Ballistic rubber blocks and anti-ricochet tiles are designed to reduce the amount of ricocheting of regular bullets from firearms. They make shooting ranges safer by reducing lead spalling in the room, protecting against ricochets, and improving the sound insulation of the shooting range.
BALLISTIC BLOCKS AND ANTI-RICOCHET TILES
PRODUCT INFORMATION
Colours

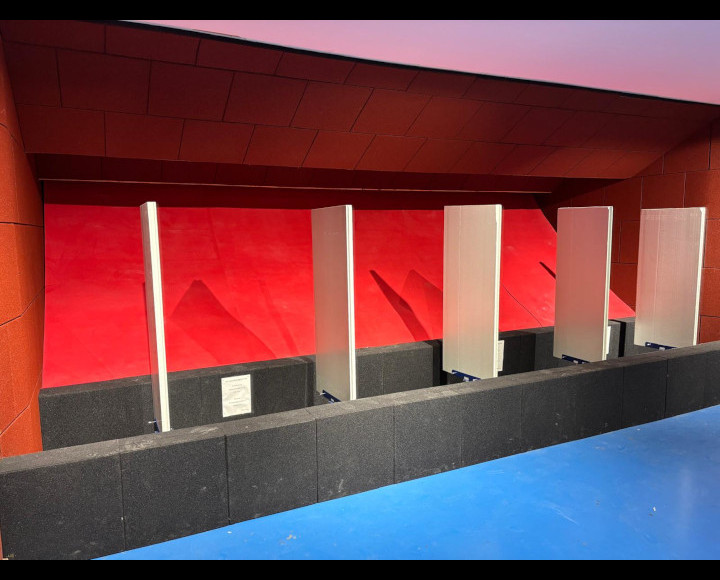

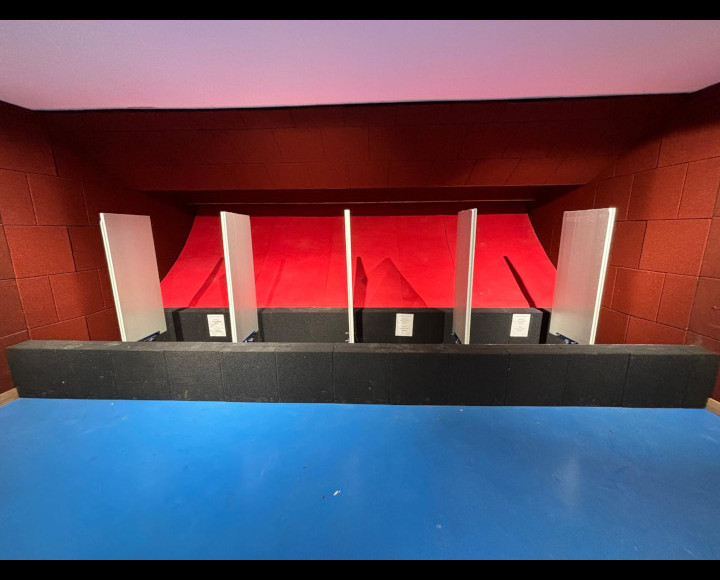

RUBRIG offers ballistic blocks that function effectively as shooting range backstops. Due to the density of the material, it absorbs the kinetic energy of the bullet and traps it in the rubber, preventing ricochets.
Rubber blocks and tiles reduce the risk of ricochets and spalling, which means less lead contamination in the air and in the room.
Colours

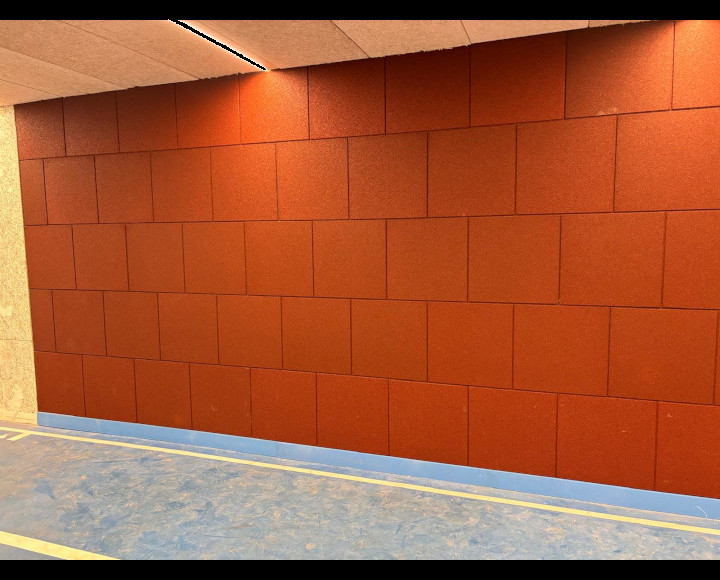

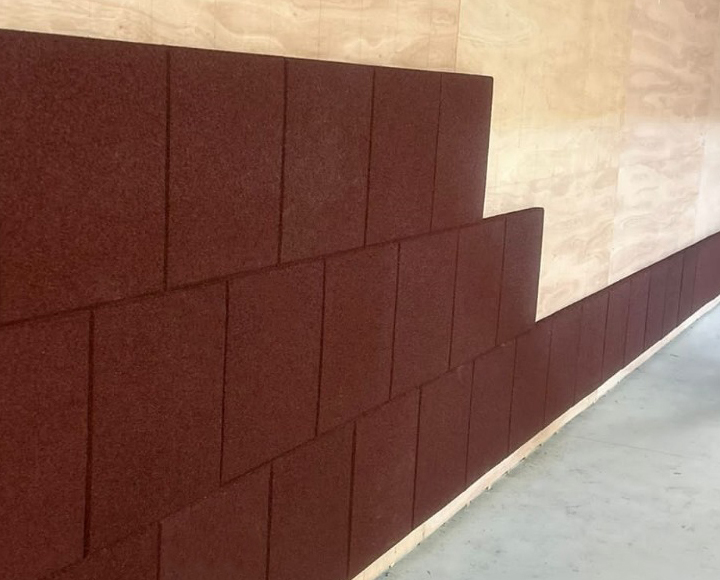

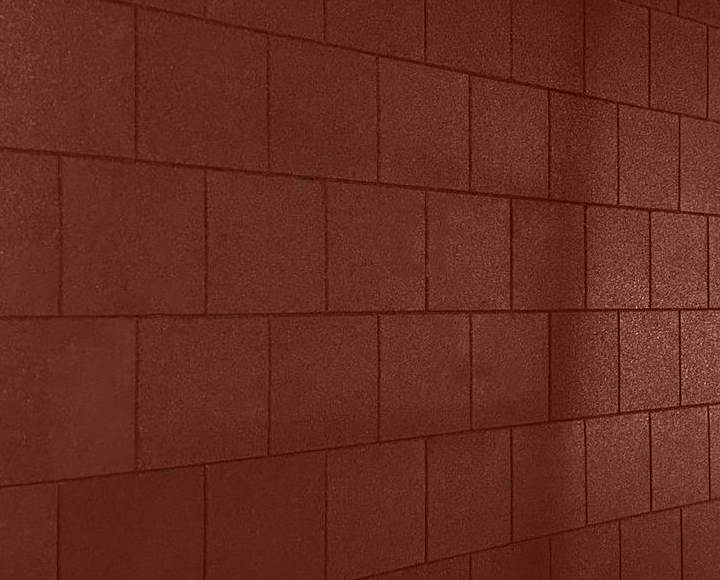

Anti-ricochet tiles are designed to prevent a bullet from ricocheting towards the shooter, even at low angles. Due to the density of the material, it absorbs the kinetic energy of the bullet and traps it in the rubber, preventing ricochets.
Anti-ricochet tiles act as an excellent sound insulator, reducing noise in the shooting range.
Rubber blocks and tiles reduce the risk of ricochets and spalling, which means less lead contamination in the air and in the room.
BALLISTIC BLOCKS
D: 200mm
H: 500mm
W: 500mm
ANTI-RICOCHET TILES
D: 40mm – 45mm
H: 500mm
W: 1000mm
D: 40mm – 45mm
H: 1000mm
W: 1000mm
| BALLISTIC BLOCKS | ||||
|---|---|---|---|---|
| D mm | Approx. weight kg/m2 | Density kg/m3 | Testing | |
| 500x500x200 | 45 | 850 | Royal Military Academy
Weapon Systems and Ballistics Department (Belgium)AgBB - Pass
 |
|
| ANTI-RICOCHET TILES | ||||
|---|---|---|---|---|
| D mm | Approx. weight kg/m2 | Density kg/m3 | Testing | |
| 40 | 34,4 | 900 | Royal Military Academy
Weapon Systems and Ballistics Department (Belgium) AgBB - Pass |
|
| 45 | 39 | 900 | ||
